AR Application Development

A step-by-step guide to integrating 3D models into interactive AR experiences.

How It Works​

Step 1

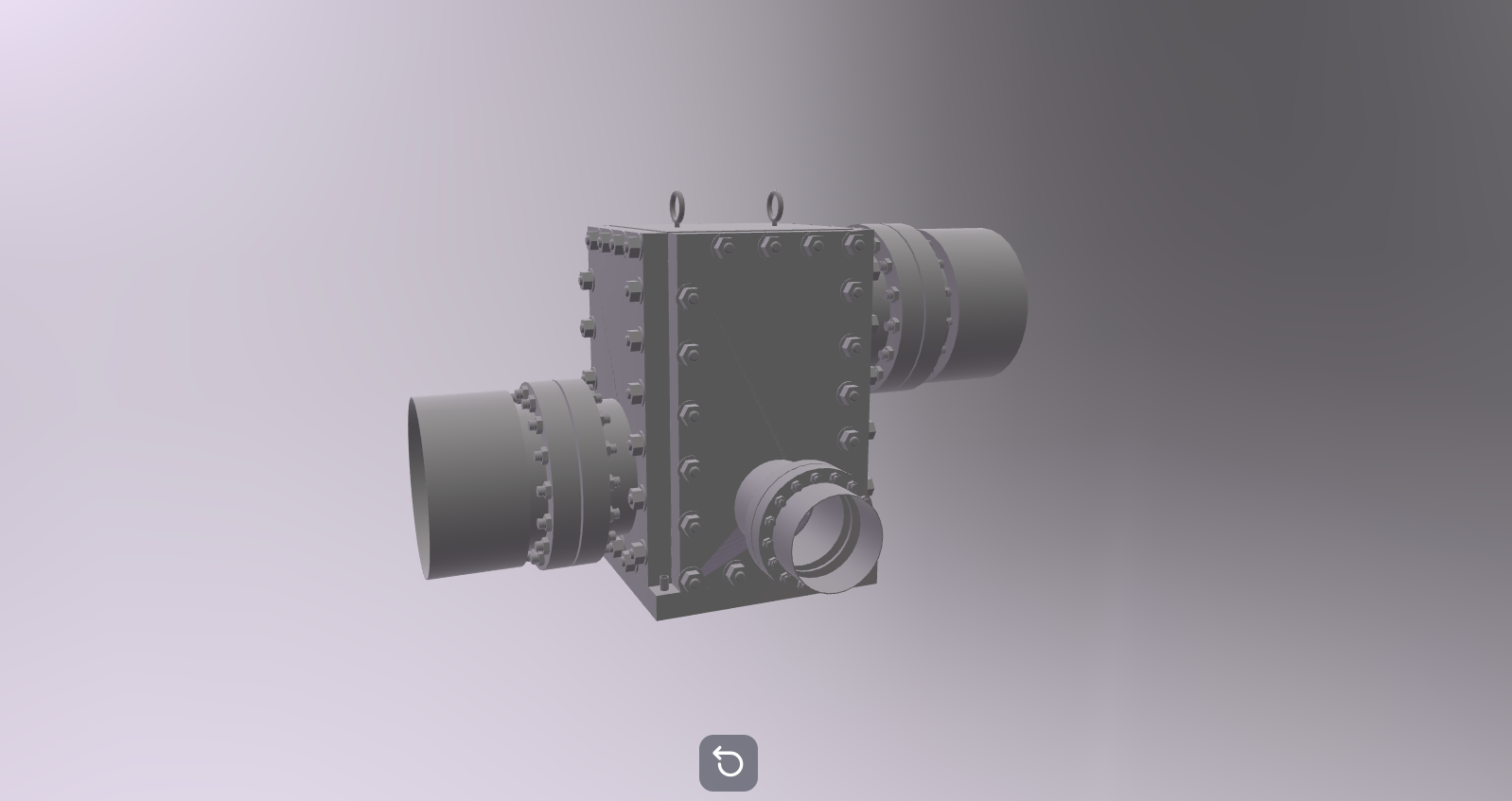

Step 1 Prepare 3D Model

Export your model in a format Unity supports (.fbx or .obj).

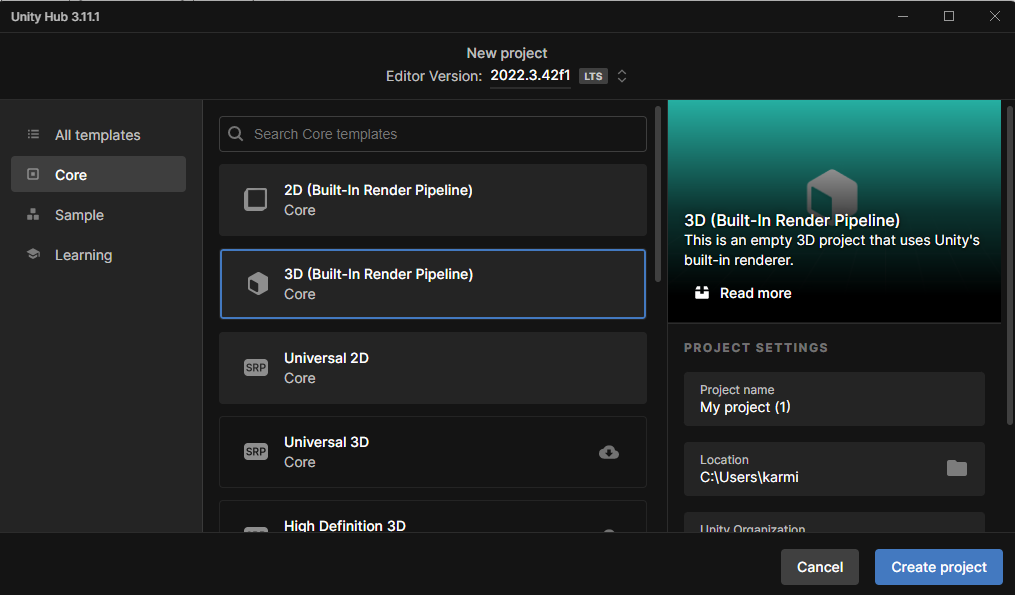

Step 2 Create New Unity Project

Open Unity Hub and create a new 3D project.

Step 2
Step 3

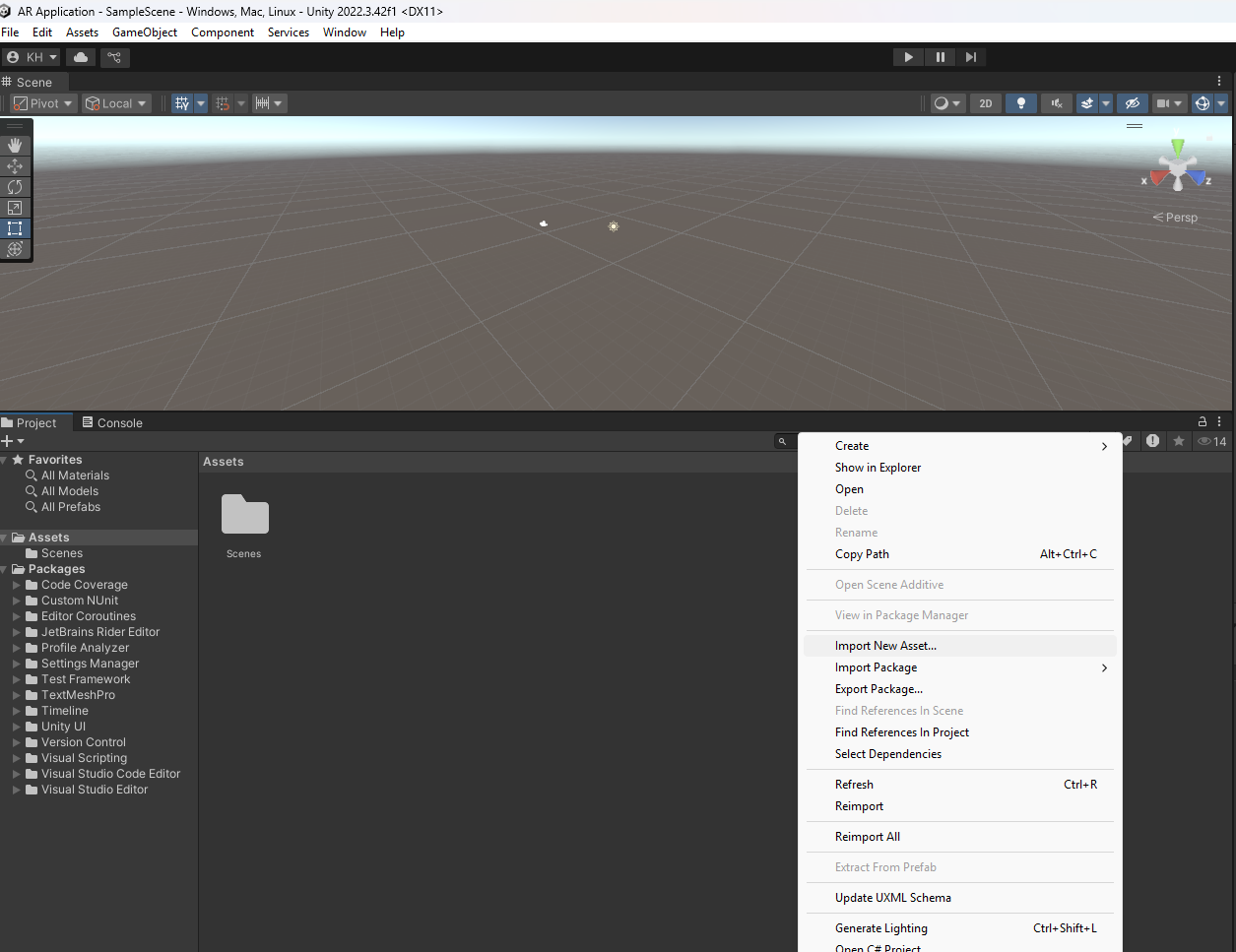

Step 3 Import 3D Model

In Unity, go to the Assets menu → Import New Asset → select your 3D model. Drag and drop the model into your Scene view.

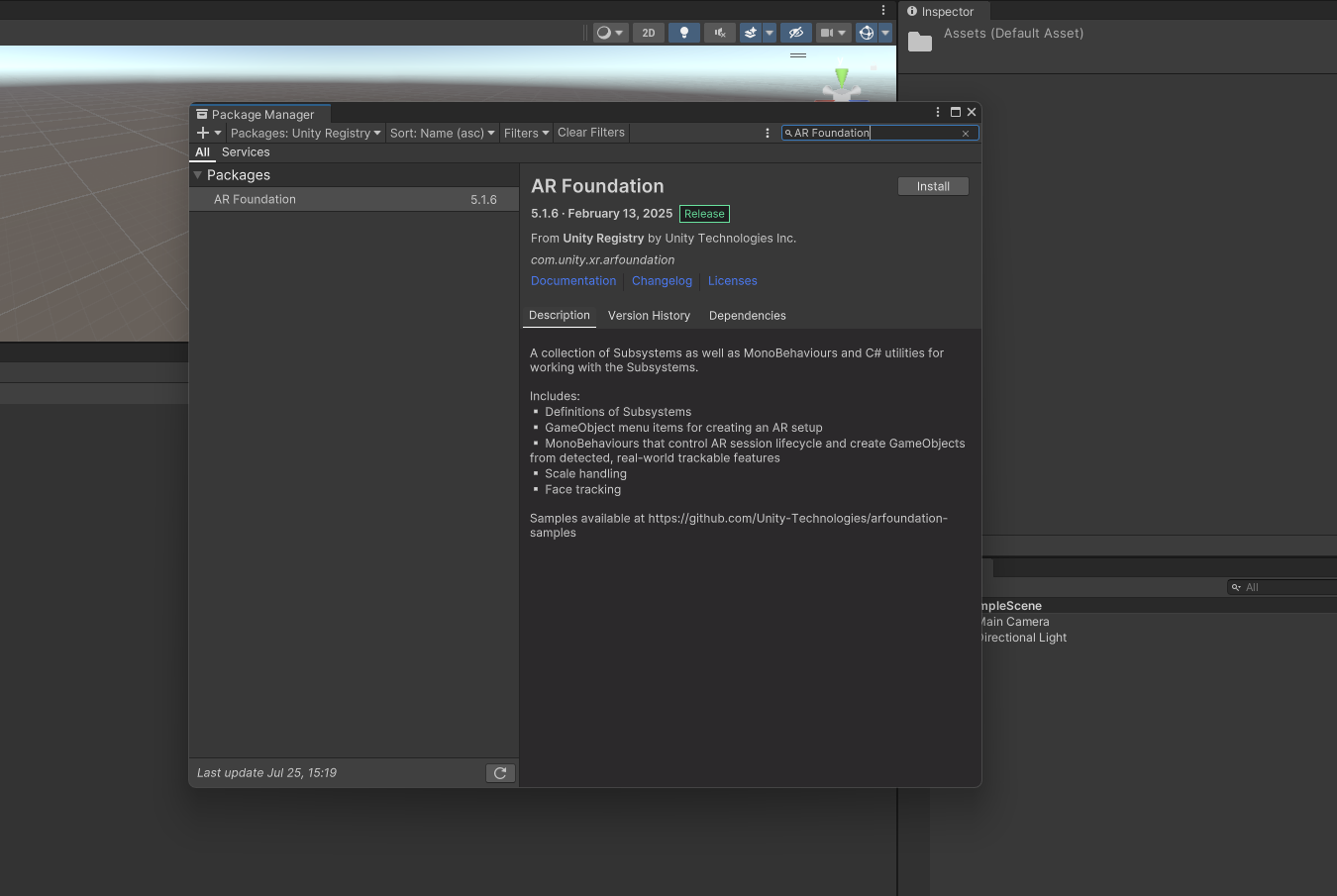

Step 4 Set Up AR Environment

Install AR Foundation and platform packages (ARCore/ARKit). Set up AR Session Origin and Camera. Attach your 3D model and add interaction scripts.

Step 4
Step 5

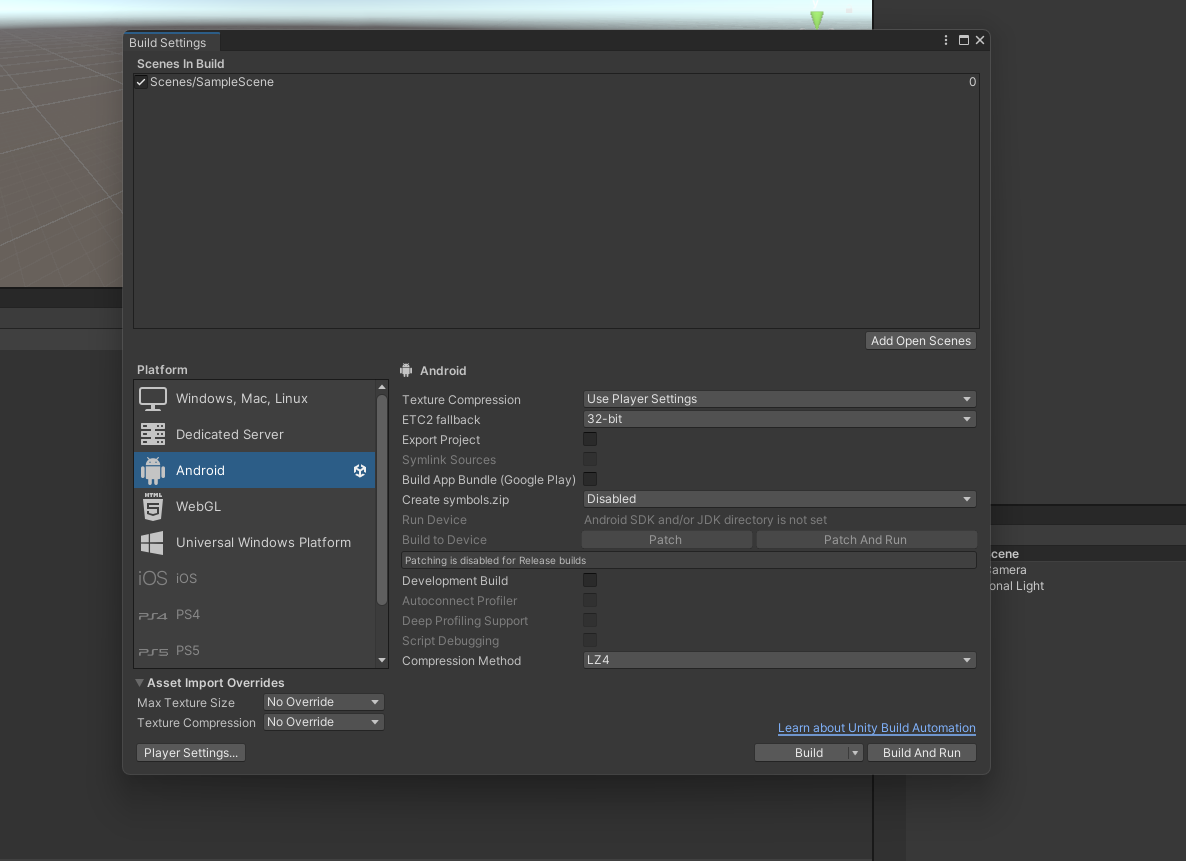

Step 5 Build and Run

Connect your smartphone. In Unity, open Build Settings, select Android or iOS, then Build and Run on your device.​​​

Tools Used

Key software and platforms involved in the training

Unity

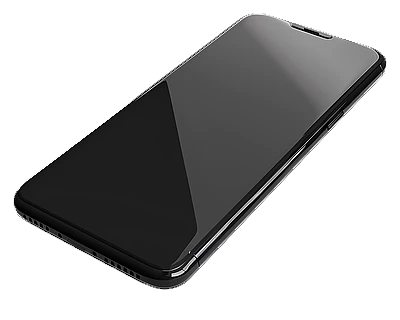

Smartphone

Smartphone

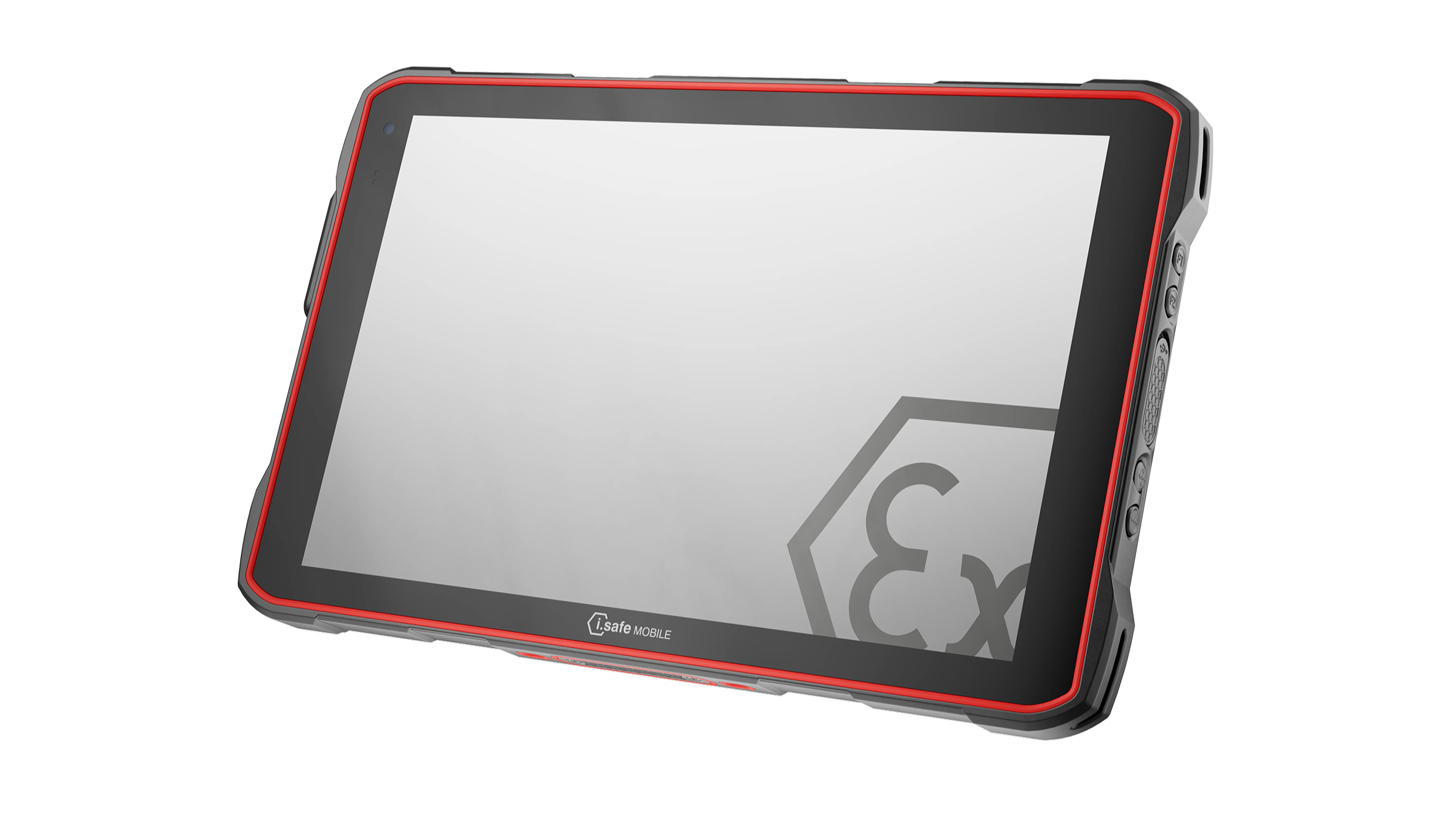

Tablet

Tablet

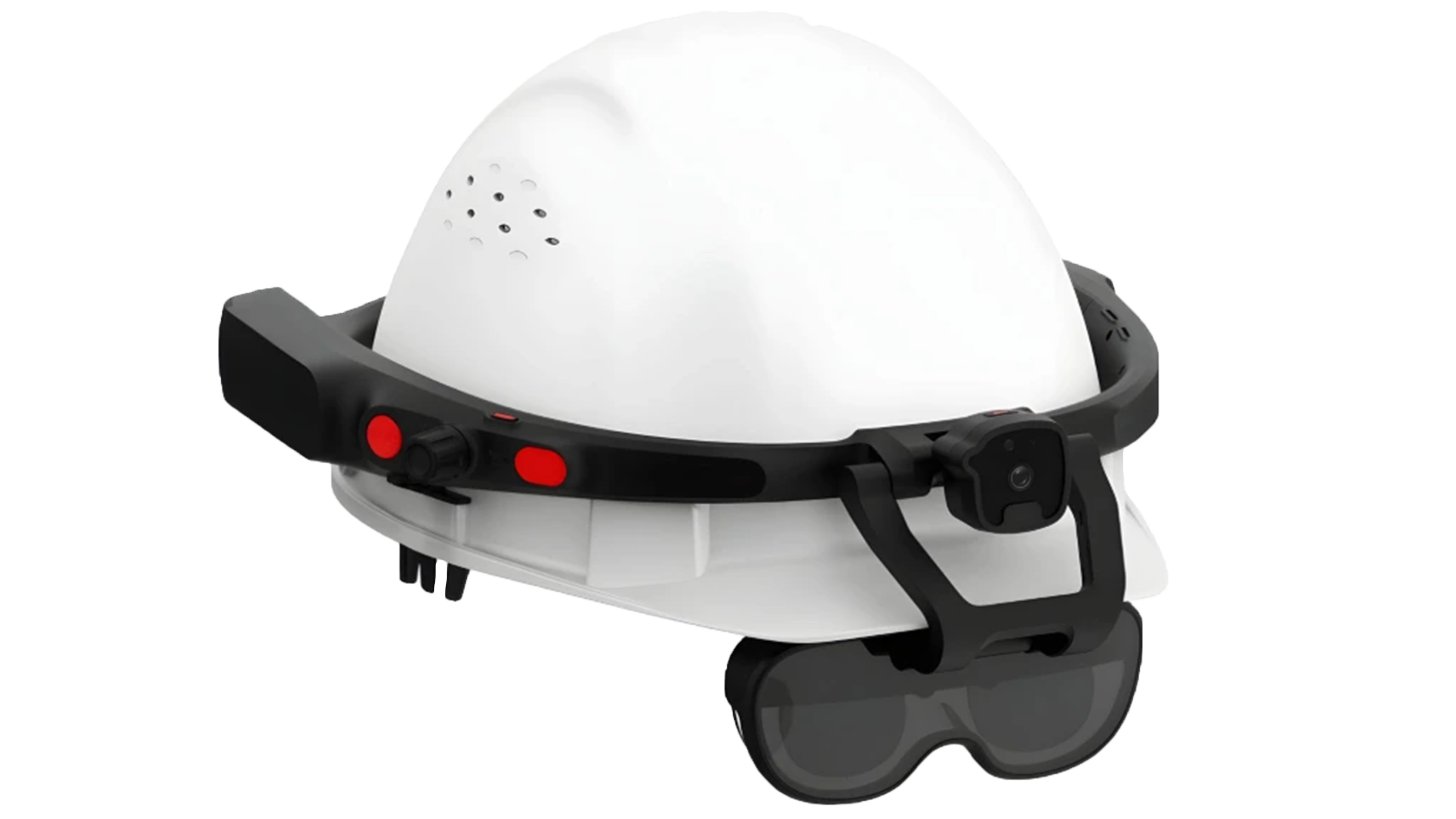

AR Headset

AR Headset

Want to go further? Check out our other training modules !

← Back to Training ​​​
